PHANTOM® T-SERIES

Home / Products / Phantom® T-Series

PHANTOM® T-SERIES

COMPACT SIZE, EASY MAINTENANCE, OPERATOR FRIENDLY, RUGGED & RELIABLE

The Phantom® T-Series is a rapid deployment high-performance ROV system that provides more power and versatility compared to other vehicles in its class. Its polypropylene chassis is resilient, non-corroding, and maintenance free. The Phantom® T5's design of its four vectored horizontal and one vertical Tecnadyne® thrusters provides significant control and propulsion in current, with abundant propulsive force to maneuver aggressively in all directions. The T-Series can be customized with three, four, or five total thrusters dependent upon the application.

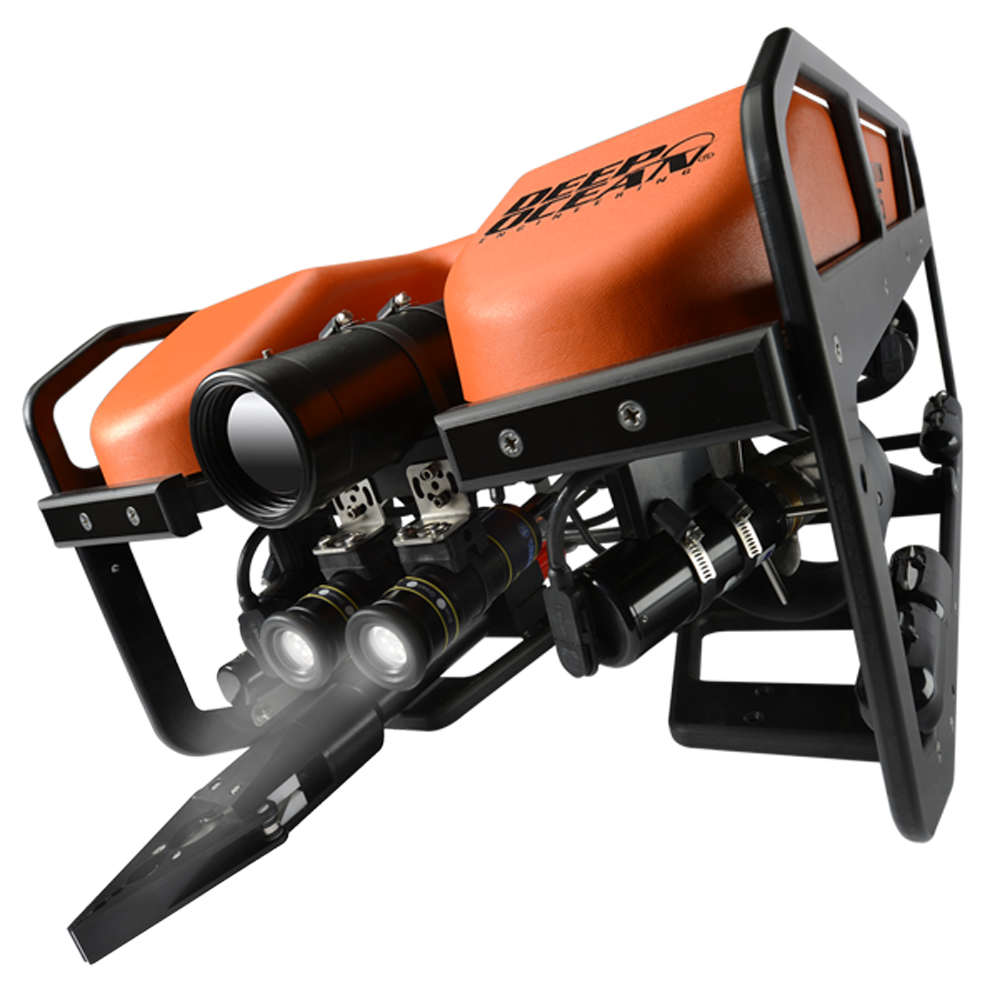

Phantom T5 ROV

PHANTOM® T-SERIES TECHNOLOGY


The Phantom® T-Series is a rapid deployment high performance ROV system that provides more power and versatility compared to other vehicles in its class. Its polypropylene chassis is resilient, non-corroding, and maintenance free.

Protective Covers

Protective covers house electric bottles, cables, and additional floatation if needed.

HD Camera

High resolution for optimum video quality.

Polypropylene Frame

Resilient polypropylene frame.

Manipulators

Manipulators easily added as an option.

LED Lights

High lumen output on tilting mechanism with camera.

Brushless Thrusters

Powerful magnetically coupled brushless thrusters.

  • Salient Features
  • Hardware & Software
  • Options available
  • Thrusters
  • Weight & Size
  • Specifications

Salient Features

  •  Powerful maneuverability
  •  Incorporates an open architecture
  •  Integrates with a wide variety of sensors
  •  Hand-built on a rugged, resilient, non-corroding polypropylene chassis
  •  Chassis accommodates heavier payloads

Hardware and Software

  •  HD camera (1920x1080) front mounted on mechanical tilt
  •  Front facing LED lighting (18,000 lumens)
  •  Control console and power unit
  •  300m copper umbilical
  •  Auto functions for heading, depth and trim (speed)

Options available

  •  Upgraded umbilicals
  •  Cameras
  •  Lights
  •  Sonars
  •  Manipulators
  •  GPS, INS, DVL and navigational software

Thrusters

  Configuration 4 vectored horizontal, 1 vertical (T5)
  Forward Thrust 63.0kgf (139 lb) (T5)
  Lateral Thrust 14.0kgf (30 lb) (T5)
  Vertical Thrust 17.0kgf (37 lb) (T5)
  Thrusters Tecnadyne® magnetically-coupled brushless thrusters
  Speed at Surface 4.0 knots (T5)

Weight & Size

  Weight in Air 39.5 kg (87 lbs.)
  Length 889 mm (35 in)
  Width 559 mm (22 in)
  Height 406 mm (16 in)
