PHANTOM® H-1750 USV

Home / Products / PHANTOM® H-1750 USV

PHANTOM® H-1750 USV

A POWERFUL 1.75M REMOTE-CONTROLLED BOAT

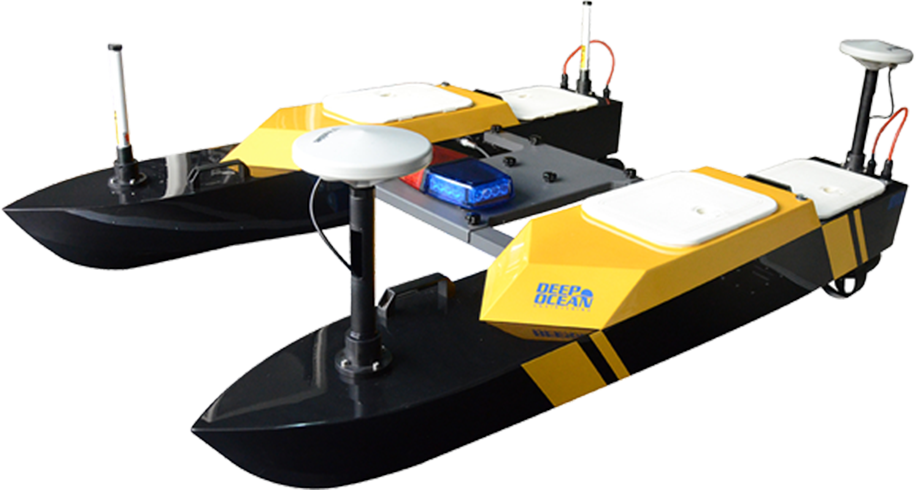

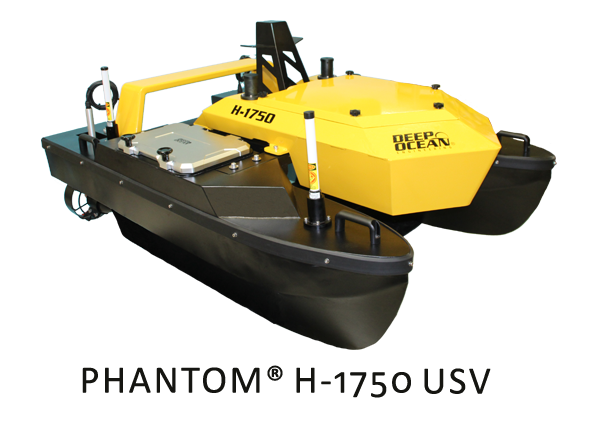

The Phantom® H-1750 USV is a powerful, 1.75m, remotely controlled, battery-powered, catamaran-style unmanned surface vessel designed and manufactured by Deep Ocean Engineering to conduct measurements of currents, bathymetry, discharge and surveys in a variety of environments.

Case Studies

PHANTOM® H-1750 USV TECHNOLOGY


The Phantom® H-1750 USV is a powerful, 1.75m, remotely controlled, battery-powered, catamaran-style unmanned surface vessel designed and manufactured by Deep Ocean Engineering to conduct measurements of currents, bathymetry, discharge and surveys in a variety of environments.



Easy Disassembly

Vehicle easily disassembles with thumb screws for easy mobile and demobilization

Aluminum Hulls

Heavy duty aluminum hulls with floation also double as storage to keep shipping costs down

HD Camera

Real time forward looking wide angle HD camera

Aluminum Housing

Central aluminum housing stores all on board computers and third party equipment

Thrusters

Powerful thrusters

  • Salient Features
  • Hardware & Software
  • Application
  • Thrusters
  • Weight & Size
  • Specifications

Salient Features

  •   Utilizes 2 Torqueedo thrusters
  •   Range of up to 2km distance with RC (extended with mission planning software and GPS)
  •   Spacious and accessible electronics compartment
  •   Portable and easily deployable vessel
  •   Hand-built with a rugged, lightweight hull constructed of carbon fiber
  •   One-year manufacturer’s warranty

Hardware and Software

  •  Ethernet and serial channels
  •  Modular design
  •  Real time telemetry
  •  Variety of optional sensors such as sonar, HD video camera and multi-constellation GPS with RTK

Application

  •   Water quality surveys in contaminated waters
  •   Bathymetry
  •   Discharge monitoring
  •   Scientific research
  •   Lake and river surveys
  •   Harbor inspections
  •   Port security

Thrusters

  Top Speed :  1.7m/s (3.8mph)
  Survey Speed :  1.2m/s (2.7mph)
  Payload :  60kg (130lbs)
  Battery Life @ Top Speed :  1hr +
  Battery Life @ Survey Speed :  3hrs +

Weight & Size

  Length :  1750mm (5.74ft)
  Width :  1270mm (4.17ft)
  Chassis :  Non-corroding aluminum alloy with stainless steel hardware
  Weight :  290lbs with removable ballast

Specifications

For additional information, click here
