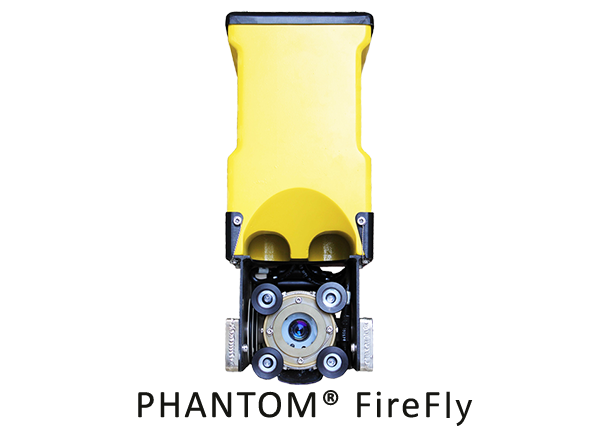

PHANTOM® FireFly

SIZED TO PENETRATE THE TOP GUIDE AND CORE PLATE FOR BWR BOTTOM OF VESSEL EXAMS WITH GUIDES AND PLATES INSTALLED.

The Phantom® FireFly is a small, portable system whose primary visual exam task is the steam dryer, and is sized to reach the bottom of the vessel via stub tube or a removed fuel bundle. With no electronics in the sub-unit the Phantom® FireFly maintains reliability in areas of high radiation.

Phantom® FireFly Technology


The Phantom® FireFly operates with the NIS-300 Control System; A digital control system designed to be backwards compatible with all existing FireFly ROVs in the fleet and a smaller, more concise topside controls package. Multiple video formats (single coax, Y/C and 1080P) are supported.

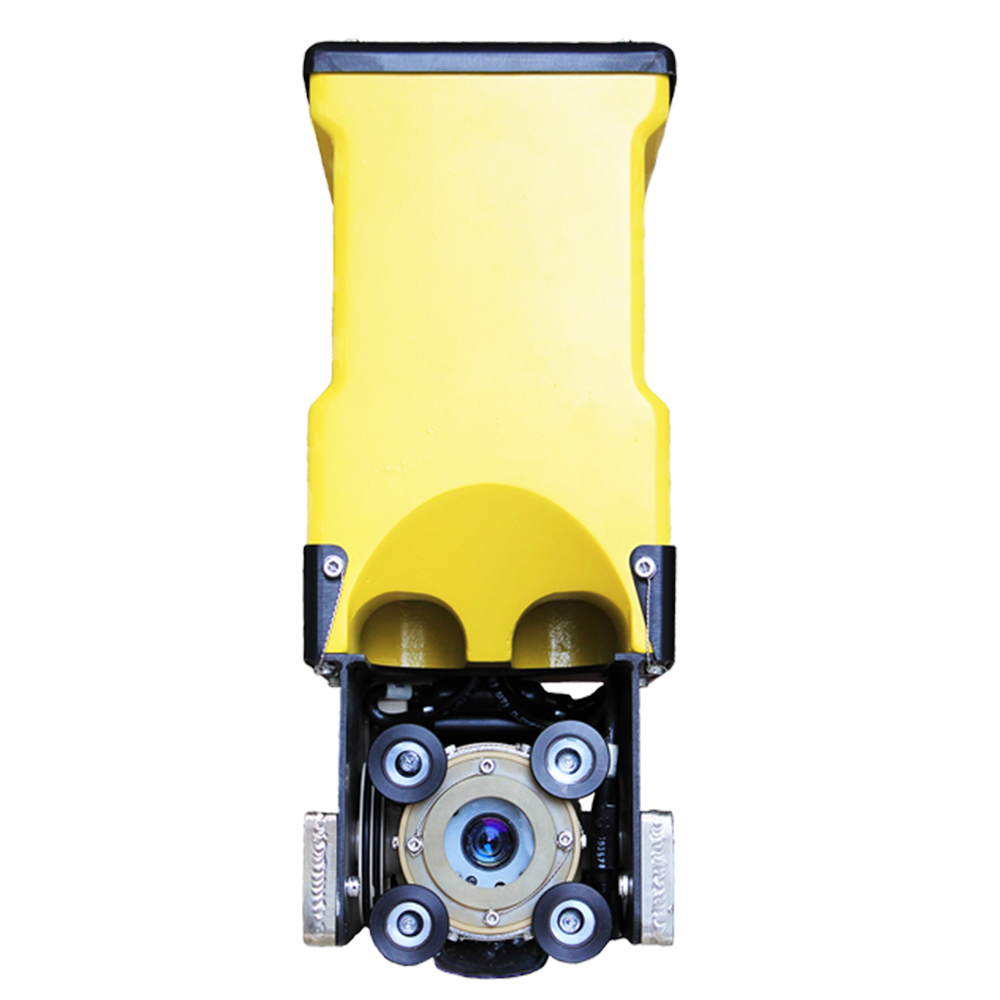

Phantom FireFly ROV

Aluminum Bumpers

Hard annodized aluminum bumpers and safety tied hardware.

Cameras

Radiation tolerant cameras availble.

Camera Tilt

Full 180 degree camera tilt

  • Salient Features
  • Application
  • Thrusters
  • Weight & Size
  • Additional Information

Salient Features

  •  Torque balanced thrusters provide a high degree of control and maneuverability in the confined environments of a containment pool, transfer canal or spent fuel pool
  •  No electronics in the sub-unit ensures reliability in areas of high radiation
  •  Hardwired for fast and easy integration with accessories
  •  All system fuses located in the surface control console for fast access

Applications

  •  Steam Dryer visual exams
  •  Emergent exams of necessity below the fuel

Thrusters

  •  48 volts DC motors, driven at around 60VDC
  •   Shaft driven
  •  Individually controlled
  •  Mineral oil filled compensator on shaft seal

Weight & Size

  Weight :  6.35kg (14 lb)
  Length :  190mm (7.5 in)
  Width :  146mm (5.8 in)
  Height :  343mm (13.5 in)
